Pinouts and Connectors¶
Backplate Configuration¶
No Backplate¶
The EchoTherm can be used with no backplate attached, in which the user must create or use a commercial thermal module carrier board. The EchoTherm Module is form-factor and pin-compatible with FLIR Boson adapters as long as those adapter use the USB interface.

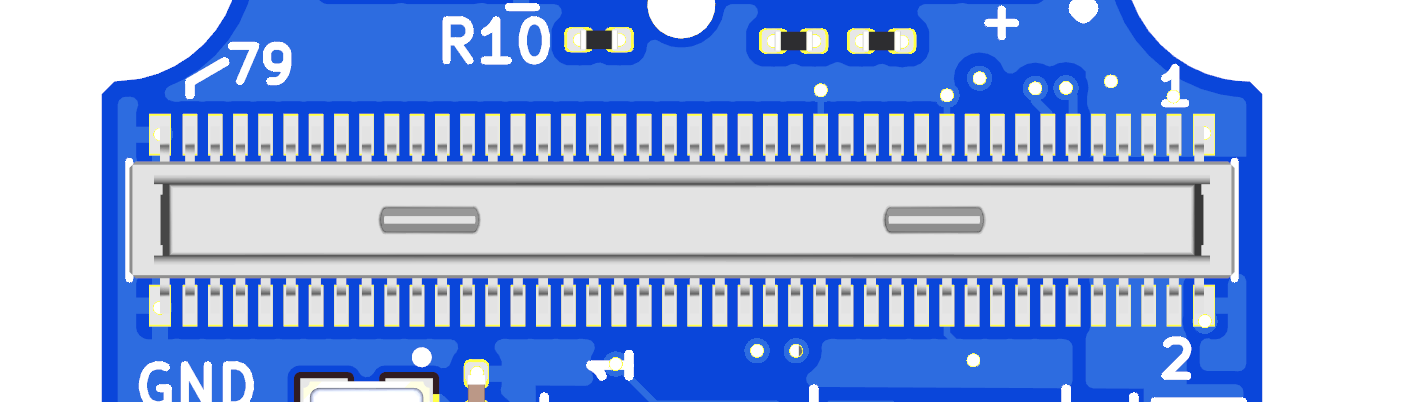

The connector on the back of the EchoTherm is a Hirose DF40C-80DP-0.4V(51) and is designed to be used with the mating connector DF40HC(4.0)-80DS-0.4V(51).
| Pin Number | Direction | Voltage | Pin Description |
|---|---|---|---|
| 1 | Pwr | GND | GND |
| 2 | Pwr | +3.3V | Power In |
| 3 | Pwr | GND | GND |
| 4 | Pwr | +3.3V | Power In |
| 5 | Pwr | GND | GND |
| 6 | Pwr | +3.3V | Power In |
| 7 | Pwr | GND | GND |
| 8 | Pwr | +3.3V | Power In |
| 9 | IO | NA | USB D- |
| 10 | Pwr | GND | GND |
| 11 | IO | NA | USB D+ |
| 12 | NA | NA | NC |
| 13 | Pwr | GND | GND |
| 14 | NA | NA | NC |
| 15 | NA | NA | NC |
| 16 | NA | NA | NC |
| 17 | NA | NA | NC |
| 18 | NA | NA | NC |
| 19 | Pwr | GND | GND |
| 20 | Pwr | GND | GND |
| 21 | NA | NA | NC |
| 22 | NA | NA | NC |
| 23 | NA | NA | NC |
| 24 | NA | NA | NC |
| 25 | NA | NA | NC |
| 26 | NA | NA | NC |
| 27 | NA | NA | NC |
| 28 | NA | NA | NC |
| 29 | Pwr | GND | GND |
| 30 | Pwr | GND | GND |
| 31 | NA | NA | NC |
| 32 | NA | NA | NC |
| 33 | NA | NA | NC |
| 34 | NA | NA | NC |
| 35 | NA | NA | NC |
| 36 | NA | NA | NC |
| 37 | NA | NA | NC |
| 38 | NA | NA | NC |
| 39 | Pwr | GND | GND |
| 40 | Pwr | GND | GND |
| 41 | NA | NA | NC |
| 42 | NA | NA | NC |
| 43 | NA | NA | NC |
| 44 | NA | NA | NC |
| 45 | NA | NA | NC |
| 46 | NA | NA | NC |
| 47 | NA | NA | NC |
| 48 | NA | NA | NC |
| 49 | Pwr | GND | GND |
| 50 | Pwr | GND | GND |
| 51 | NA | NA | NC |
| 52 | NA | NA | NC |
| 53 | NA | NA | NC |
| 54 | NA | NA | NC |
| 55 | NA | NA | NC |
| 56 | NA | NA | NC |
| 57 | NA | NA | NC |
| 58 | NA | NA | NC |
| 59 | Pwr | GND | GND |
| 60 | Pwr | GND | GND |
| 61 | NA | NA | NC |
| 62 | NA | NA | NC |
| 63 | NA | NA | NC |
| 64 | NA | NA | NC |
| 65 | NA | NA | NC |
| 66 | NA | NA | NC |
| 67 | NA | NA | NC |
| 68 | NA | NA | NC |
| 69 | Pwr | GND | GND |
| 70 | Pwr | GND | GND |
| 71 | NA | NA | NC |
| 72 | NA | NA | NC |
| 73 | NA | NA | NC |
| 74 | NA | NA | NC |
| 75 | NA | NA | NC |
| 76 | NA | NA | NC |
| 77 | NA | NA | NC |
| 78 | NA | NA | NC |
| 79 | Pwr | GND | GND |
| 80 | NA | NA | NC |

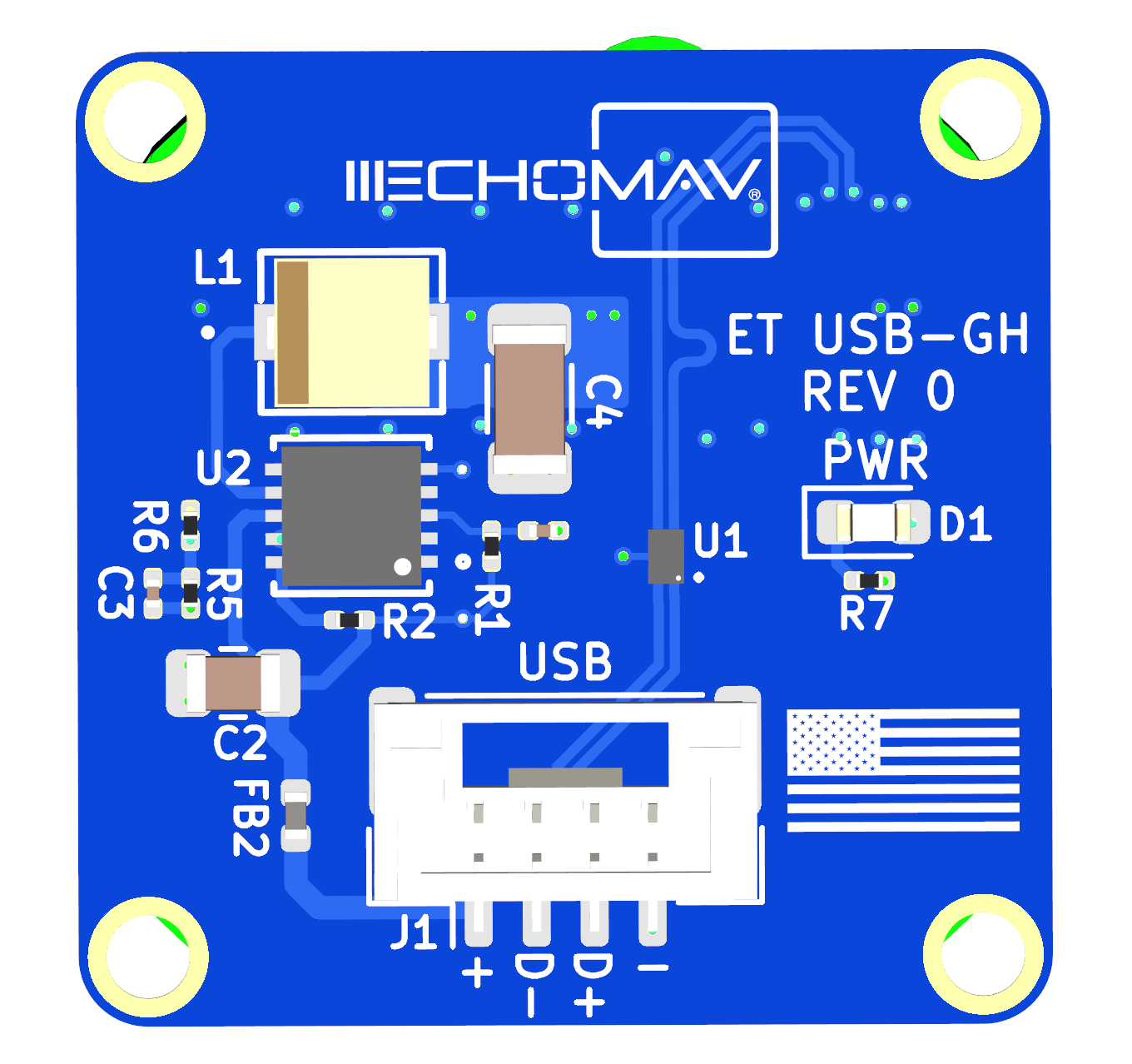

USB Backplate¶
The included USB 2.0 adapter board attaches to the Hirose connector above, and provides a JST GH 4 pin connector for USB connectivity. A USB Micro to JST GH adapter is included, but the pinout is provided below if you wish to make a custom cable assembly.
| Pin Number | Direction | Voltage | Pin Description |
|---|---|---|---|
| 1 | Pwr | +5.0V | Power In |
| 2 | IO | NA | USB D- |
| 3 | IO | NA | USB D+ |
| 4 | Pwr | GND | GND |
